MODEL
- S
- M
-
S model
1 Person
S model
1 Person
Parameter
-
Frame Size
1600 mm wide × 1445 mm deep × 2300 mm high
-
Inner Frame Size
1466 mm wide × 1402 mm deep × 2166 mm high
-
Wall
45mm thick aluminum alloy multi-layer composite WPC hollow
-
Soundproof Glass
Use 10mm single layer
-
Sound Absorbing Layer
Noise reduction coefficient NRC=0.91, RoHS standard.
-
Carpet
10mm velcro textile sound-absorbing carpet
-
Lamps
4000K, 1600 lumens
-
Socket
100-240V/50-60Hz and 12V-USB/Type-C; additionally, external connection ports and network cable ports are reserved.
-
Fresh Air System
The cabin air can be refreshed every 2-3 minutes.
-
Appearance Color
-
HWH
-
HDG
-
HBU
-
HOR
-
HRE
-
HYE
-
HJR
-
HBL
-
HDO
-
HWO
-
-
Interior Color
-
H144
-
H234
-
H332
-
H411
-
H518
-
H612
-
H714
-
H837
-
H1926
-
H2033
-
H916
-
H1020
-
H1105
-
H1207
-
H1310
-
H1439
-
H1545
-
H1647
-
H1741
-
H1843
-
-

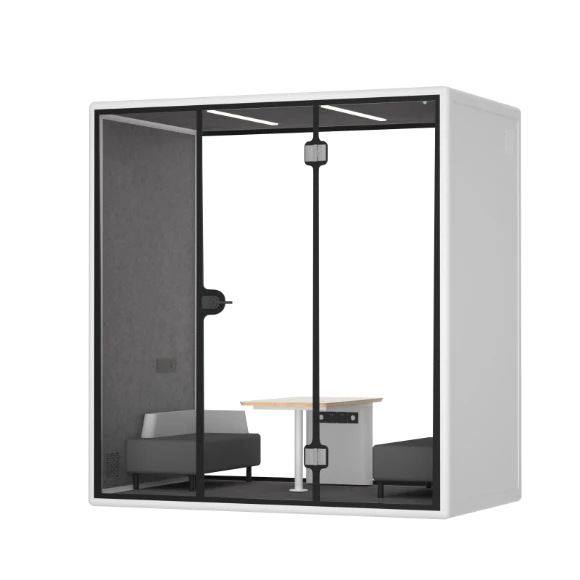

M model
5 Person
M model
5 Person
Parameter
-
Appearance Color
-
Interior Color
-
H144
-
H234
-
H332
-
H411
-
H518
-
H612
-
H714
-
H837
-
H1926
-
H2033
-
H916
-
H1020
-
H1105
-
H1207
-
H1310
-
H1439
-
H1545
-
H1647
-
H1741
-
H1843
-
-
Diversity Selection Options
-
Furniture
-
Air Conditioner
-
Smart Door Lock
-
Smart Glass
-
Swivel Wheel
-
Smart Control Panel
-

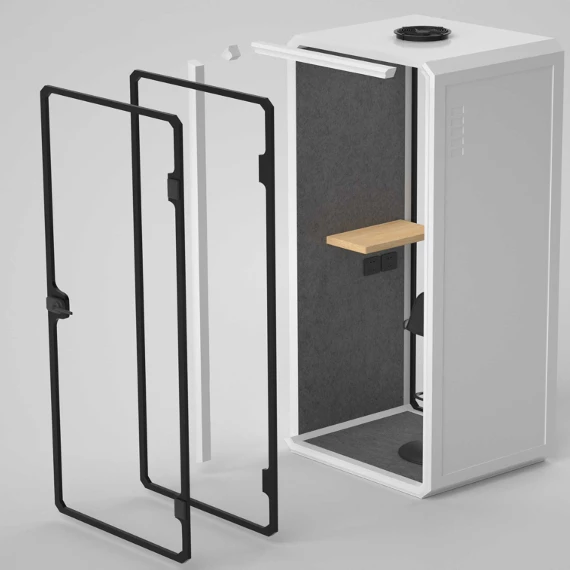

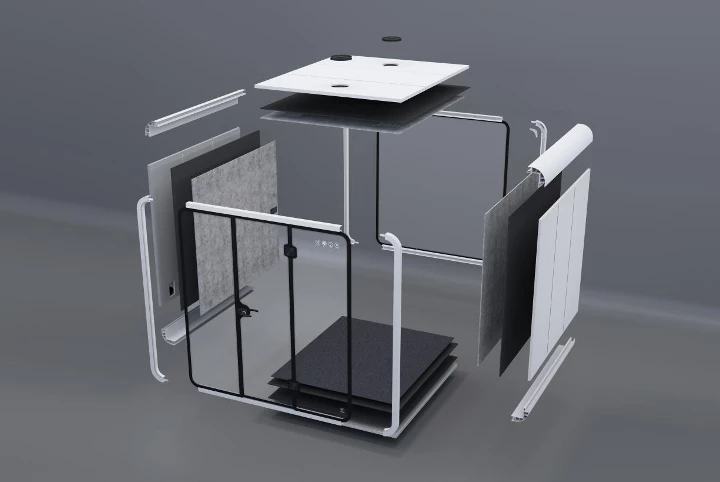

Modular Frame System
It adopts an aluminum alloy frame, supported by reinforced 6061-T6 aluminum alloy profiles with a thickness of ≥3.0mm, and features a modular design. It is sturdy, lightweight, and durable, and can be repeatedly disassembled and reassembled more than 10 times, flexibly adapting to various expansions and relocations.
-

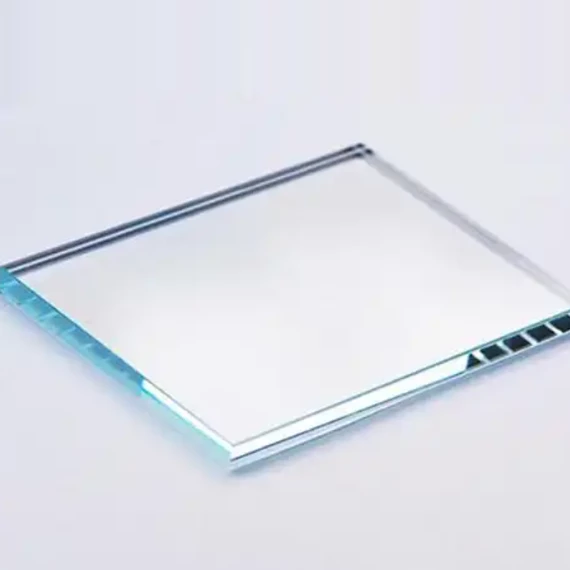

Soundproof Glass
It uses 10mm tempered glass, which is explosion-proof and fire-resistant. The entire structure is sealed with double-layer sound insulation film and surrounding sound insulation sealing strips, effectively improving sound insulation and vibration reduction.
-
Multi-layer Composite Wall
The 45mm-thick polymer wood-plastic composite (WPC) hollow-core wall system complies with international standards for noise reduction performance, features a B1-class flame retardancy rating, and utilizes a PVC film surface finish.
-

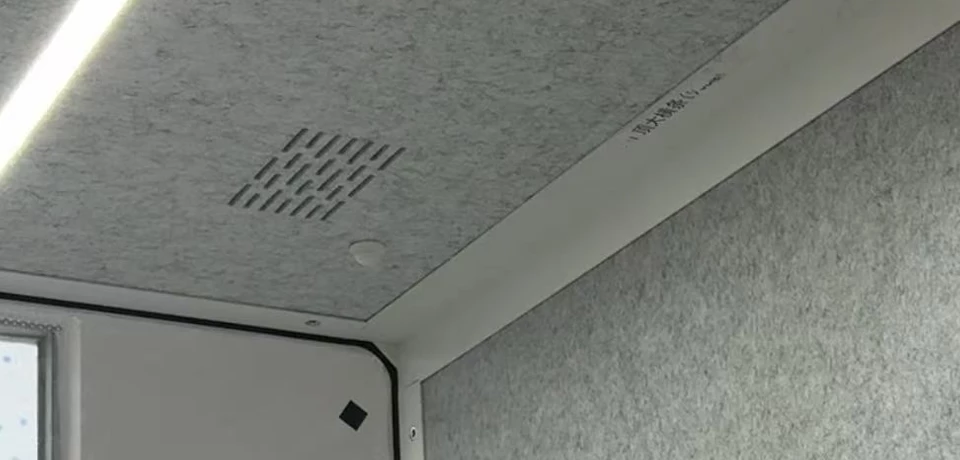

Sound-absorbing Lining
The pod interior is equipped with high-density acoustic materials, including high-density 12mm polyester fiber sound-absorbing panels, forming a sound insulation + vibration damping + sound absorption structure. It boasts a load-bearing deformation rate of <3%, and offers advantages such as easy cleaning, fire resistance, and wear resistance.
-
Status-sensitive Smart Light
The system intelligently senses human presence; when someone is working inside, ventilation, lights, and power automatically turn on, and when someone leaves, these functions automatically turn off. It saves energy and is convenient and fast.
-

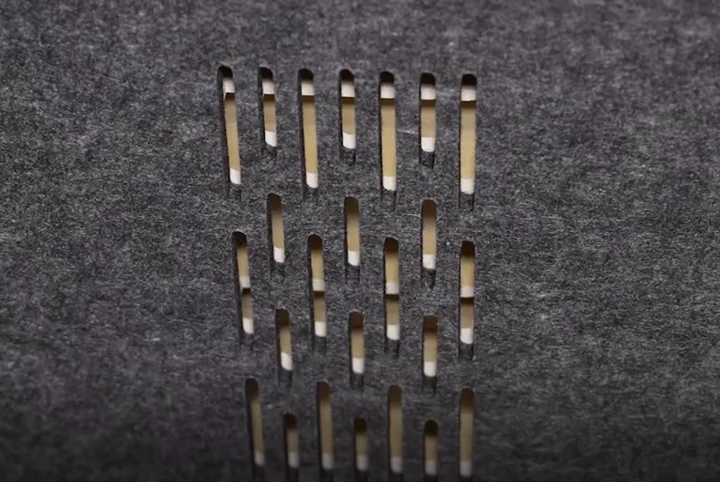

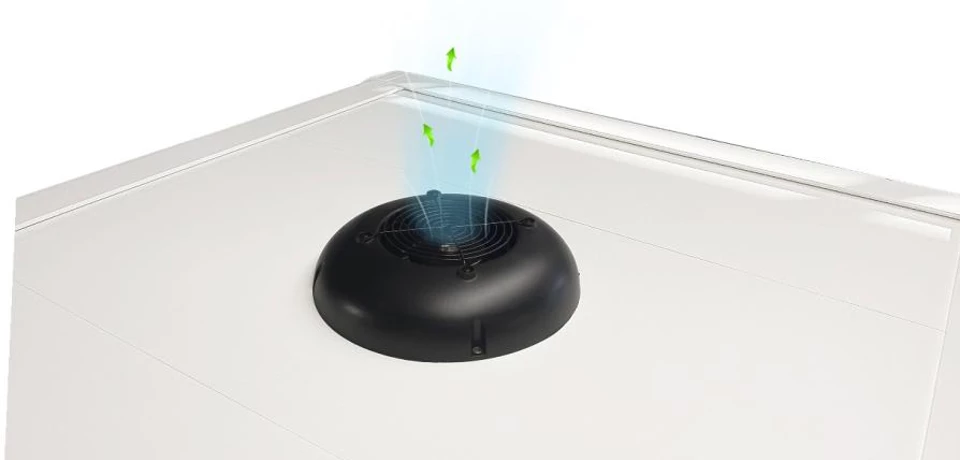

Ventilation System
Features a multi-layered sound barrier design and an upward-inward, downward-outward circulating airflow. The PD labyrinth-type low-noise fresh air system reduces sound transmission between the interior and exterior of the pod, allowing for a complete air exchange every 2 minutes. The design achieves a sound insulation rating of RW+Ctr 30dB.
-

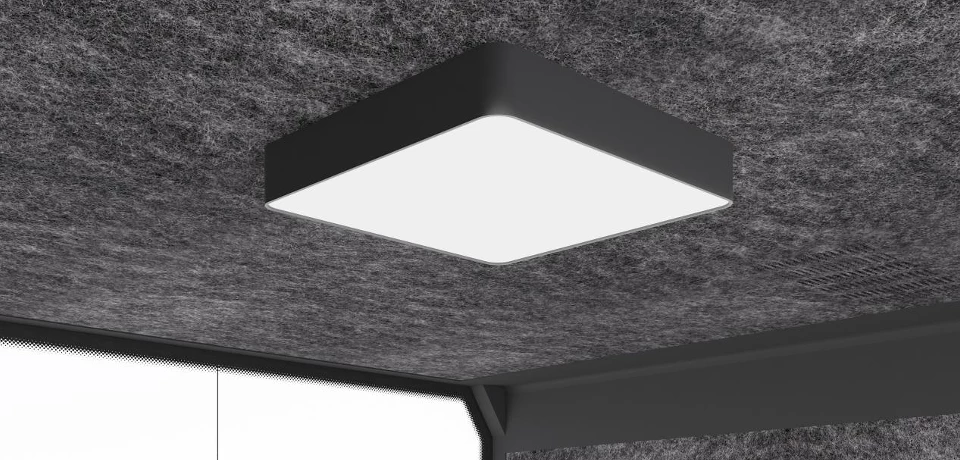

Lighting System
4000K color temperature LED lights, luminaire efficacy: 80-90 lm/w, 19W flat panel light source, providing continuous and stable sufficient lighting inside the pod, reducing eye strain. Three-color controllable lighting allows for easy switching between work and rest modes.
-

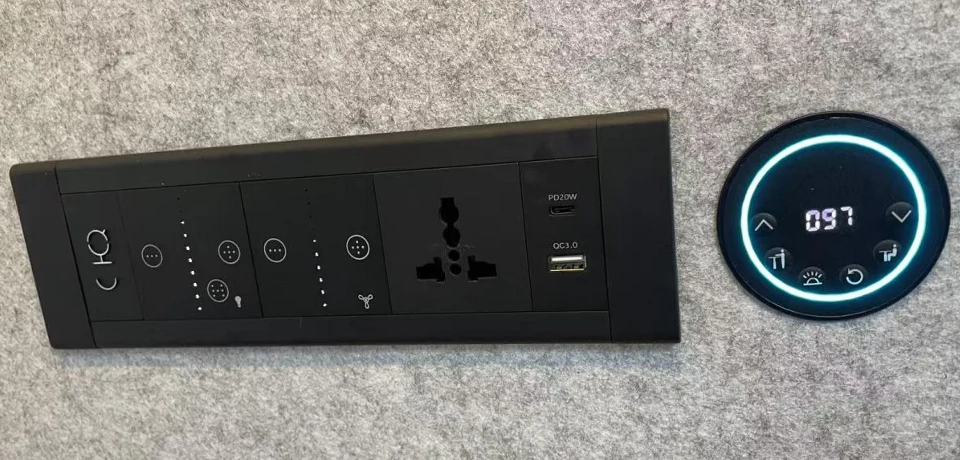

Power System
It is compatible with 100-240V/50-60Hz and 12V-USB, Type-C power supply, and is equipped with an international socket, three-way switch and USB interface inside the cabin. It also has reserved external connection port and network cable port to support multi-functional application scenarios.
-

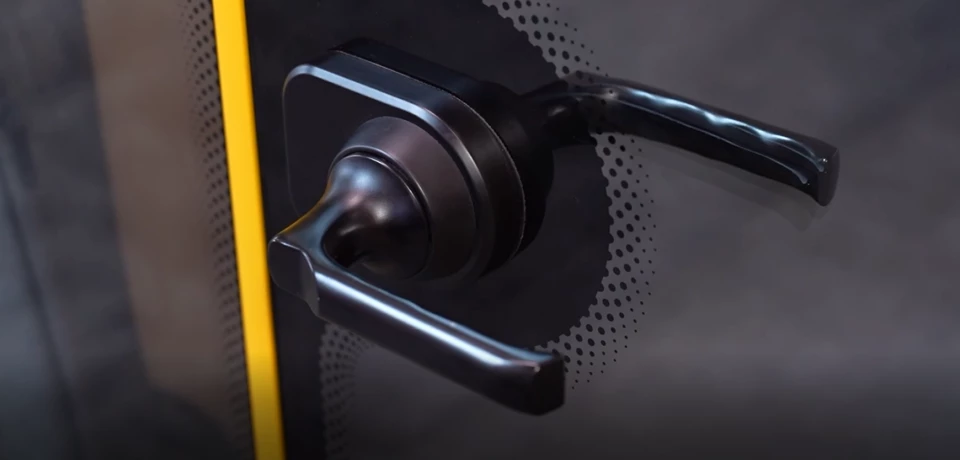

Door Handle System
Features a rust-proof alloy silent door lock for easy installation. The silent design effectively enhances sound insulation and sealing, preventing sound and dust from entering.
